1. Material Principles and Crystallographic Quality
1.1 Phase Make-up and Polymorphic Behavior

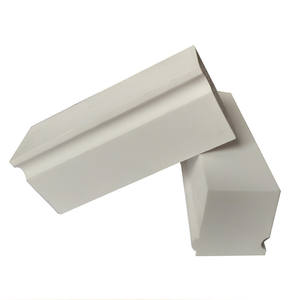

(Alumina Ceramic Blocks)
Alumina (Al ₂ O ₃), specifically in its α-phase type, is among one of the most widely utilized technological porcelains because of its outstanding balance of mechanical strength, chemical inertness, and thermal stability.
While light weight aluminum oxide exists in several metastable phases (γ, δ, θ, κ), α-alumina is the thermodynamically secure crystalline framework at heats, identified by a dense hexagonal close-packed (HCP) arrangement of oxygen ions with aluminum cations inhabiting two-thirds of the octahedral interstitial websites.
This purchased structure, referred to as corundum, confers high latticework power and solid ionic-covalent bonding, resulting in a melting factor of about 2054 ° C and resistance to stage makeover under severe thermal problems.
The shift from transitional aluminas to α-Al two O six typically occurs over 1100 ° C and is come with by significant quantity shrinkage and loss of surface, making phase control important during sintering.
High-purity α-alumina blocks (> 99.5% Al Two O THREE) display exceptional efficiency in severe environments, while lower-grade compositions (90– 95%) may consist of additional stages such as mullite or lustrous grain limit phases for cost-effective applications.
1.2 Microstructure and Mechanical Integrity
The efficiency of alumina ceramic blocks is greatly affected by microstructural attributes including grain size, porosity, and grain boundary communication.
Fine-grained microstructures (grain size < 5 µm) usually offer higher flexural toughness (up to 400 MPa) and improved crack durability compared to coarse-grained counterparts, as smaller sized grains hamper crack proliferation.
Porosity, even at reduced levels (1– 5%), considerably minimizes mechanical toughness and thermal conductivity, demanding complete densification via pressure-assisted sintering techniques such as hot pushing or hot isostatic pushing (HIP).
Ingredients like MgO are usually introduced in trace amounts (≈ 0.1 wt%) to prevent uncommon grain development during sintering, making certain uniform microstructure and dimensional stability.
The resulting ceramic blocks show high hardness (≈ 1800 HV), excellent wear resistance, and low creep rates at elevated temperature levels, making them suitable for load-bearing and rough settings.
2. Manufacturing and Processing Techniques
( Alumina Ceramic Blocks)
2.1 Powder Prep Work and Shaping Methods
The manufacturing of alumina ceramic blocks begins with high-purity alumina powders originated from calcined bauxite through the Bayer procedure or synthesized through precipitation or sol-gel routes for greater purity.
Powders are milled to accomplish narrow fragment dimension circulation, improving packaging density and sinterability.
Shaping into near-net geometries is achieved via different forming methods: uniaxial pushing for simple blocks, isostatic pressing for uniform thickness in complicated shapes, extrusion for lengthy sections, and slip casting for elaborate or huge components.
Each technique influences environment-friendly body thickness and homogeneity, which straight impact last residential properties after sintering.
For high-performance applications, progressed developing such as tape spreading or gel-casting may be utilized to achieve superior dimensional control and microstructural uniformity.
2.2 Sintering and Post-Processing
Sintering in air at temperatures in between 1600 ° C and 1750 ° C enables diffusion-driven densification, where fragment necks expand and pores shrink, bring about a fully dense ceramic body.
Environment control and accurate thermal accounts are necessary to prevent bloating, warping, or differential contraction.
Post-sintering procedures include ruby grinding, lapping, and brightening to accomplish limited resistances and smooth surface area finishes called for in sealing, sliding, or optical applications.
Laser reducing and waterjet machining allow exact personalization of block geometry without inducing thermal stress.
Surface area therapies such as alumina finishing or plasma splashing can even more boost wear or deterioration resistance in specialized service conditions.
3. Functional Properties and Performance Metrics
3.1 Thermal and Electric Behavior
Alumina ceramic blocks exhibit moderate thermal conductivity (20– 35 W/(m · K)), dramatically more than polymers and glasses, allowing reliable heat dissipation in electronic and thermal administration systems.
They preserve architectural stability approximately 1600 ° C in oxidizing environments, with reduced thermal growth (≈ 8 ppm/K), contributing to superb thermal shock resistance when appropriately developed.
Their high electrical resistivity (> 10 ¹⁴ Ω · cm) and dielectric stamina (> 15 kV/mm) make them perfect electric insulators in high-voltage atmospheres, consisting of power transmission, switchgear, and vacuum systems.
Dielectric consistent (εᵣ ≈ 9– 10) stays stable over a vast frequency range, sustaining use in RF and microwave applications.
These residential properties make it possible for alumina blocks to function dependably in atmospheres where organic products would weaken or fail.
3.2 Chemical and Environmental Durability
One of the most beneficial features of alumina blocks is their extraordinary resistance to chemical assault.
They are very inert to acids (except hydrofluoric and hot phosphoric acids), alkalis (with some solubility in strong caustics at raised temperatures), and molten salts, making them appropriate for chemical handling, semiconductor fabrication, and contamination control equipment.
Their non-wetting actions with many liquified steels and slags permits usage in crucibles, thermocouple sheaths, and furnace cellular linings.
In addition, alumina is non-toxic, biocompatible, and radiation-resistant, expanding its energy into medical implants, nuclear shielding, and aerospace elements.
Marginal outgassing in vacuum cleaner atmospheres additionally qualifies it for ultra-high vacuum (UHV) systems in research study and semiconductor manufacturing.
4. Industrial Applications and Technical Assimilation
4.1 Structural and Wear-Resistant Components
Alumina ceramic blocks act as critical wear parts in sectors ranging from extracting to paper manufacturing.
They are utilized as linings in chutes, receptacles, and cyclones to stand up to abrasion from slurries, powders, and granular products, significantly prolonging service life contrasted to steel.
In mechanical seals and bearings, alumina blocks provide low rubbing, high firmness, and rust resistance, decreasing maintenance and downtime.
Custom-shaped blocks are incorporated into reducing devices, dies, and nozzles where dimensional security and side retention are critical.
Their light-weight nature (thickness ≈ 3.9 g/cm FOUR) additionally contributes to power savings in relocating components.
4.2 Advanced Design and Arising Makes Use Of
Past traditional duties, alumina blocks are significantly used in innovative technical systems.
In electronics, they work as shielding substrates, heat sinks, and laser dental caries elements because of their thermal and dielectric homes.
In energy systems, they function as solid oxide gas cell (SOFC) components, battery separators, and combination activator plasma-facing materials.
Additive manufacturing of alumina using binder jetting or stereolithography is arising, making it possible for complex geometries previously unattainable with standard developing.
Crossbreed frameworks combining alumina with steels or polymers via brazing or co-firing are being established for multifunctional systems in aerospace and defense.
As material scientific research breakthroughs, alumina ceramic blocks continue to develop from easy architectural components into active elements in high-performance, sustainable design options.
In recap, alumina ceramic blocks represent a foundational course of sophisticated porcelains, integrating durable mechanical efficiency with remarkable chemical and thermal stability.
Their versatility throughout commercial, electronic, and clinical domain names highlights their enduring worth in modern engineering and innovation growth.
