1. Material Basics and Microstructural Characteristics of Alumina Ceramics
1.1 Composition, Pureness Qualities, and Crystallographic Properties

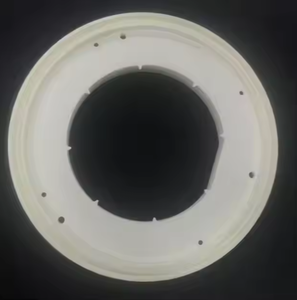

(Alumina Ceramic Wear Liners)
Alumina (Al Two O SIX), or light weight aluminum oxide, is one of one of the most commonly made use of technical ceramics in industrial design because of its exceptional equilibrium of mechanical toughness, chemical stability, and cost-effectiveness.
When engineered into wear linings, alumina ceramics are generally fabricated with pureness degrees ranging from 85% to 99.9%, with greater pureness representing improved hardness, wear resistance, and thermal efficiency.
The dominant crystalline stage is alpha-alumina, which adopts a hexagonal close-packed (HCP) structure defined by solid ionic and covalent bonding, contributing to its high melting factor (~ 2072 ° C )and low thermal conductivity.
Microstructurally, alumina porcelains consist of fine, equiaxed grains whose dimension and distribution are managed during sintering to maximize mechanical properties.
Grain sizes generally vary from submicron to a number of micrometers, with finer grains typically boosting crack sturdiness and resistance to split propagation under abrasive loading.
Minor additives such as magnesium oxide (MgO) are frequently introduced in trace total up to inhibit abnormal grain development during high-temperature sintering, ensuring uniform microstructure and dimensional security.
The resulting material shows a Vickers firmness of 1500– 2000 HV, significantly exceeding that of solidified steel (generally 600– 800 HV), making it remarkably immune to surface area degradation in high-wear settings.
1.2 Mechanical and Thermal Performance in Industrial Issues
Alumina ceramic wear linings are selected primarily for their outstanding resistance to abrasive, erosive, and sliding wear devices prevalent in bulk product dealing with systems.
They possess high compressive toughness (as much as 3000 MPa), good flexural strength (300– 500 MPa), and excellent stiffness (Young’s modulus of ~ 380 GPa), enabling them to hold up against extreme mechanical loading without plastic contortion.
Although inherently brittle compared to metals, their reduced coefficient of friction and high surface solidity reduce fragment attachment and lower wear rates by orders of magnitude about steel or polymer-based options.
Thermally, alumina preserves structural honesty up to 1600 ° C in oxidizing atmospheres, enabling usage in high-temperature handling environments such as kiln feed systems, boiler ducting, and pyroprocessing equipment.
( Alumina Ceramic Wear Liners)
Its low thermal development coefficient (~ 8 × 10 ⁻⁶/ K) adds to dimensional security during thermal cycling, decreasing the risk of fracturing because of thermal shock when correctly set up.
In addition, alumina is electrically insulating and chemically inert to the majority of acids, alkalis, and solvents, making it suitable for destructive settings where metal liners would degrade rapidly.
These combined residential or commercial properties make alumina porcelains ideal for shielding crucial framework in mining, power generation, concrete manufacturing, and chemical processing sectors.
2. Production Processes and Layout Assimilation Techniques
2.1 Shaping, Sintering, and Quality Control Protocols
The manufacturing of alumina ceramic wear linings involves a sequence of precision manufacturing steps created to attain high density, marginal porosity, and consistent mechanical performance.
Raw alumina powders are refined via milling, granulation, and forming methods such as completely dry pushing, isostatic pushing, or extrusion, depending upon the preferred geometry– floor tiles, plates, pipelines, or custom-shaped sections.
Environment-friendly bodies are after that sintered at temperatures in between 1500 ° C and 1700 ° C in air, promoting densification through solid-state diffusion and attaining relative thickness surpassing 95%, usually coming close to 99% of theoretical thickness.
Full densification is important, as recurring porosity functions as tension concentrators and accelerates wear and crack under solution conditions.
Post-sintering procedures might consist of diamond grinding or splashing to achieve tight dimensional tolerances and smooth surface finishes that decrease friction and bit capturing.
Each set undertakes extensive quality control, including X-ray diffraction (XRD) for phase analysis, scanning electron microscopy (SEM) for microstructural analysis, and hardness and bend testing to confirm compliance with international requirements such as ISO 6474 or ASTM B407.
2.2 Placing Strategies and System Compatibility Considerations
Effective assimilation of alumina wear linings into commercial equipment needs mindful interest to mechanical attachment and thermal development compatibility.
Usual installation methods include adhesive bonding using high-strength ceramic epoxies, mechanical attaching with studs or supports, and embedding within castable refractory matrices.
Glue bonding is commonly used for flat or delicately rounded surfaces, giving uniform anxiety circulation and vibration damping, while stud-mounted systems permit very easy substitute and are chosen in high-impact zones.
To fit differential thermal development between alumina and metal substratums (e.g., carbon steel), crafted spaces, adaptable adhesives, or certified underlayers are integrated to avoid delamination or splitting during thermal transients.
Developers have to also consider side security, as ceramic floor tiles are vulnerable to breaking at subjected corners; remedies include beveled edges, metal shrouds, or overlapping floor tile configurations.
Appropriate installment guarantees long service life and maximizes the safety feature of the liner system.
3. Wear Systems and Efficiency Evaluation in Solution Environments
3.1 Resistance to Abrasive, Erosive, and Impact Loading
Alumina ceramic wear linings excel in settings dominated by three main wear devices: two-body abrasion, three-body abrasion, and fragment disintegration.
In two-body abrasion, difficult particles or surfaces straight gouge the liner surface, an usual event in chutes, receptacles, and conveyor changes.
Three-body abrasion includes loosened bits entraped between the lining and relocating product, resulting in rolling and damaging activity that slowly removes product.
Abrasive wear happens when high-velocity bits strike the surface area, particularly in pneumatically-driven conveying lines and cyclone separators.
As a result of its high firmness and low fracture sturdiness, alumina is most reliable in low-impact, high-abrasion scenarios.
It does exceptionally well versus siliceous ores, coal, fly ash, and concrete clinker, where wear prices can be reduced by 10– 50 times compared to moderate steel liners.
Nonetheless, in applications including duplicated high-energy influence, such as primary crusher chambers, hybrid systems integrating alumina floor tiles with elastomeric backings or metallic guards are often utilized to absorb shock and stop fracture.
3.2 Area Testing, Life Cycle Analysis, and Failing Setting Analysis
Performance evaluation of alumina wear linings includes both research laboratory testing and field monitoring.
Standardized examinations such as the ASTM G65 dry sand rubber wheel abrasion test give relative wear indices, while personalized slurry disintegration rigs replicate site-specific problems.
In industrial setups, put on rate is commonly measured in mm/year or g/kWh, with service life forecasts based upon first density and observed deterioration.
Failing settings include surface area polishing, micro-cracking, spalling at sides, and total tile dislodgement due to adhesive destruction or mechanical overload.
Root cause analysis often exposes installment errors, inappropriate grade selection, or unexpected influence tons as key factors to early failing.
Life cycle price analysis constantly shows that regardless of higher first costs, alumina liners supply premium total cost of ownership due to extended replacement periods, minimized downtime, and lower maintenance labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Implementations Throughout Heavy Industries
Alumina ceramic wear linings are released across a broad range of industrial fields where material destruction poses functional and economic difficulties.
In mining and mineral processing, they protect transfer chutes, mill linings, hydrocyclones, and slurry pumps from abrasive slurries having quartz, hematite, and other tough minerals.
In nuclear power plant, alumina ceramic tiles line coal pulverizer ducts, boiler ash receptacles, and electrostatic precipitator elements revealed to fly ash disintegration.
Concrete producers use alumina liners in raw mills, kiln inlet zones, and clinker conveyors to fight the highly rough nature of cementitious products.
The steel industry utilizes them in blast furnace feed systems and ladle shrouds, where resistance to both abrasion and modest thermal loads is important.
Also in much less standard applications such as waste-to-energy plants and biomass handling systems, alumina ceramics provide long lasting defense versus chemically aggressive and fibrous materials.
4.2 Arising Trends: Compound Solutions, Smart Liners, and Sustainability
Current study focuses on boosting the strength and capability of alumina wear systems with composite design.
Alumina-zirconia (Al Two O ₃-ZrO ₂) compounds utilize makeover toughening from zirconia to boost fracture resistance, while alumina-titanium carbide (Al two O THREE-TiC) grades use improved performance in high-temperature moving wear.
An additional innovation includes embedding sensing units within or below ceramic liners to keep an eye on wear development, temperature, and impact frequency– making it possible for predictive maintenance and digital twin integration.
From a sustainability perspective, the prolonged life span of alumina linings lowers material consumption and waste generation, straightening with circular economic climate principles in commercial procedures.
Recycling of invested ceramic liners into refractory aggregates or building and construction products is likewise being discovered to reduce ecological impact.
In conclusion, alumina ceramic wear liners represent a keystone of modern industrial wear protection technology.
Their exceptional hardness, thermal security, and chemical inertness, integrated with mature production and setup techniques, make them indispensable in combating product deterioration throughout heavy industries.
As product science advancements and digital monitoring comes to be a lot more incorporated, the next generation of clever, durable alumina-based systems will better boost operational effectiveness and sustainability in abrasive environments.
