1. The Product Structure and Crystallographic Identification of Alumina Ceramics
1.1 Atomic Style and Stage Stability

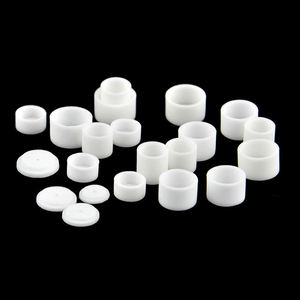

(Alumina Ceramics)
Alumina porcelains, mostly made up of light weight aluminum oxide (Al two O FOUR), stand for among one of the most widely used courses of innovative porcelains because of their exceptional balance of mechanical stamina, thermal durability, and chemical inertness.
At the atomic degree, the performance of alumina is rooted in its crystalline structure, with the thermodynamically secure alpha stage (α-Al ₂ O FIVE) being the dominant form made use of in engineering applications.
This stage adopts a rhombohedral crystal system within the hexagonal close-packed (HCP) lattice, where oxygen anions create a dense arrangement and light weight aluminum cations occupy two-thirds of the octahedral interstitial websites.
The resulting framework is highly steady, contributing to alumina’s high melting factor of roughly 2072 ° C and its resistance to decay under extreme thermal and chemical conditions.
While transitional alumina stages such as gamma (γ), delta (δ), and theta (θ) exist at reduced temperatures and exhibit greater area, they are metastable and irreversibly transform right into the alpha stage upon heating above 1100 ° C, making α-Al two O ₃ the unique stage for high-performance structural and functional parts.
1.2 Compositional Grading and Microstructural Engineering
The residential or commercial properties of alumina ceramics are not taken care of but can be tailored via regulated variants in pureness, grain dimension, and the addition of sintering aids.
High-purity alumina (≥ 99.5% Al ₂ O FIVE) is utilized in applications requiring maximum mechanical stamina, electric insulation, and resistance to ion diffusion, such as in semiconductor processing and high-voltage insulators.
Lower-purity grades (varying from 85% to 99% Al ₂ O SIX) frequently include secondary phases like mullite (3Al ₂ O ₃ · 2SiO ₂) or glassy silicates, which enhance sinterability and thermal shock resistance at the cost of firmness and dielectric performance.
A critical factor in efficiency optimization is grain dimension control; fine-grained microstructures, achieved with the enhancement of magnesium oxide (MgO) as a grain development prevention, considerably improve fracture strength and flexural stamina by restricting crack breeding.
Porosity, even at reduced degrees, has a detrimental result on mechanical integrity, and totally thick alumina porcelains are normally produced using pressure-assisted sintering methods such as hot pushing or warm isostatic pushing (HIP).
The interaction between composition, microstructure, and processing specifies the useful envelope within which alumina ceramics operate, allowing their use across a large range of industrial and technological domain names.
( Alumina Ceramics)
2. Mechanical and Thermal Efficiency in Demanding Environments
2.1 Stamina, Solidity, and Put On Resistance
Alumina ceramics display a special mix of high hardness and moderate crack strength, making them perfect for applications involving abrasive wear, erosion, and influence.
With a Vickers firmness generally ranging from 15 to 20 Grade point average, alumina rankings amongst the hardest design materials, exceeded just by diamond, cubic boron nitride, and specific carbides.
This extreme hardness translates into outstanding resistance to scraping, grinding, and particle impingement, which is made use of in parts such as sandblasting nozzles, cutting tools, pump seals, and wear-resistant linings.
Flexural strength worths for dense alumina array from 300 to 500 MPa, relying on pureness and microstructure, while compressive stamina can go beyond 2 GPa, permitting alumina parts to endure high mechanical tons without deformation.
Regardless of its brittleness– an usual trait amongst ceramics– alumina’s performance can be enhanced with geometric design, stress-relief attributes, and composite reinforcement methods, such as the unification of zirconia bits to cause transformation toughening.
2.2 Thermal Actions and Dimensional Security
The thermal residential properties of alumina ceramics are main to their use in high-temperature and thermally cycled environments.
With a thermal conductivity of 20– 30 W/m · K– greater than most polymers and similar to some steels– alumina effectively dissipates warmth, making it suitable for heat sinks, shielding substratums, and furnace elements.
Its low coefficient of thermal development (~ 8 × 10 ⁻⁶/ K) ensures very little dimensional adjustment throughout heating and cooling, decreasing the danger of thermal shock cracking.
This stability is especially useful in applications such as thermocouple security tubes, spark plug insulators, and semiconductor wafer dealing with systems, where specific dimensional control is important.
Alumina maintains its mechanical stability up to temperature levels of 1600– 1700 ° C in air, beyond which creep and grain boundary sliding might start, depending upon purity and microstructure.
In vacuum cleaner or inert ambiences, its performance expands even better, making it a favored product for space-based instrumentation and high-energy physics experiments.
3. Electrical and Dielectric Qualities for Advanced Technologies
3.1 Insulation and High-Voltage Applications
Among one of the most substantial practical characteristics of alumina porcelains is their superior electric insulation capability.
With a quantity resistivity surpassing 10 ¹⁴ Ω · centimeters at area temperature and a dielectric strength of 10– 15 kV/mm, alumina acts as a trusted insulator in high-voltage systems, including power transmission tools, switchgear, and electronic product packaging.
Its dielectric continuous (εᵣ ≈ 9– 10 at 1 MHz) is reasonably steady across a large frequency variety, making it ideal for usage in capacitors, RF elements, and microwave substratums.
Low dielectric loss (tan δ < 0.0005) makes sure marginal energy dissipation in rotating current (AIR CONDITIONER) applications, improving system effectiveness and decreasing warmth generation.
In published motherboard (PCBs) and hybrid microelectronics, alumina substrates give mechanical assistance and electric seclusion for conductive traces, making it possible for high-density circuit integration in harsh settings.
3.2 Performance in Extreme and Sensitive Environments
Alumina ceramics are distinctly suited for use in vacuum cleaner, cryogenic, and radiation-intensive settings because of their low outgassing rates and resistance to ionizing radiation.
In bit accelerators and blend reactors, alumina insulators are utilized to isolate high-voltage electrodes and analysis sensors without introducing pollutants or breaking down under long term radiation exposure.
Their non-magnetic nature likewise makes them excellent for applications entailing strong magnetic fields, such as magnetic resonance imaging (MRI) systems and superconducting magnets.
In addition, alumina’s biocompatibility and chemical inertness have resulted in its fostering in medical tools, consisting of oral implants and orthopedic parts, where long-term security and non-reactivity are extremely important.
4. Industrial, Technological, and Emerging Applications
4.1 Function in Industrial Machinery and Chemical Processing
Alumina ceramics are extensively made use of in industrial tools where resistance to use, deterioration, and high temperatures is vital.
Parts such as pump seals, valve seats, nozzles, and grinding media are typically produced from alumina due to its capacity to stand up to unpleasant slurries, hostile chemicals, and elevated temperatures.
In chemical processing plants, alumina cellular linings shield activators and pipelines from acid and alkali attack, extending devices life and reducing upkeep expenses.
Its inertness also makes it appropriate for usage in semiconductor manufacture, where contamination control is important; alumina chambers and wafer watercrafts are revealed to plasma etching and high-purity gas settings without seeping contaminations.
4.2 Integration into Advanced Manufacturing and Future Technologies
Past conventional applications, alumina ceramics are playing an increasingly crucial role in arising technologies.
In additive production, alumina powders are made use of in binder jetting and stereolithography (SLA) processes to make complex, high-temperature-resistant parts for aerospace and power systems.
Nanostructured alumina movies are being checked out for catalytic assistances, sensors, and anti-reflective finishes due to their high surface and tunable surface area chemistry.
Furthermore, alumina-based composites, such as Al ₂ O FIVE-ZrO Two or Al ₂ O FIVE-SiC, are being established to overcome the integral brittleness of monolithic alumina, offering enhanced toughness and thermal shock resistance for next-generation architectural products.
As markets remain to press the boundaries of efficiency and dependability, alumina porcelains continue to be at the forefront of material development, linking the gap between structural effectiveness and useful versatility.
In summary, alumina porcelains are not just a course of refractory materials yet a cornerstone of contemporary design, allowing technological progression throughout power, electronics, medical care, and commercial automation.
Their one-of-a-kind mix of properties– rooted in atomic structure and fine-tuned via innovative processing– guarantees their ongoing relevance in both established and emerging applications.
As product science progresses, alumina will unquestionably continue to be a vital enabler of high-performance systems operating at the edge of physical and environmental extremes.
