Intro to Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic product that has gained prevalent acknowledgment for its remarkable thermal conductivity, electric insulation, and mechanical security at raised temperature levels. With a hexagonal wurtzite crystal structure, AlN exhibits a distinct mix of buildings that make it one of the most ideal substratum material for applications in electronics, optoelectronics, power modules, and high-temperature environments. Its ability to successfully dissipate warm while preserving superb dielectric toughness placements AlN as a superior option to conventional ceramic substrates such as alumina and beryllium oxide. This post checks out the essential features of light weight aluminum nitride porcelains, delves into fabrication methods, and highlights its critical roles across sophisticated technological domains.

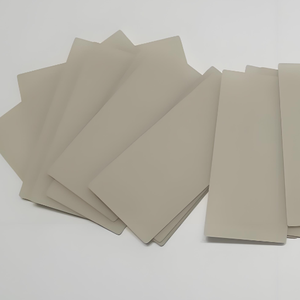

(Aluminum Nitride Ceramics)
Crystal Framework and Fundamental Properties
The performance of aluminum nitride as a substratum product is greatly determined by its crystalline framework and innate physical residential properties. AlN takes on a wurtzite-type lattice composed of alternating aluminum and nitrogen atoms, which adds to its high thermal conductivity– usually exceeding 180 W/(m · K), with some high-purity samples attaining over 320 W/(m · K). This worth substantially exceeds those of other extensively used ceramic products, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
In addition to its thermal performance, AlN possesses a large bandgap of approximately 6.2 eV, causing excellent electrical insulation buildings even at high temperatures. It additionally demonstrates reduced thermal expansion (CTE ≈ 4.5 × 10 ⁻⁶/ K), which closely matches that of silicon and gallium arsenide, making it an ideal match for semiconductor device product packaging. Furthermore, AlN exhibits high chemical inertness and resistance to molten steels, enhancing its suitability for severe atmospheres. These consolidated qualities develop AlN as a top candidate for high-power electronic substratums and thermally took care of systems.
Construction and Sintering Technologies
Producing high-grade light weight aluminum nitride porcelains calls for exact powder synthesis and sintering strategies to attain dense microstructures with very little impurities. As a result of its covalent bonding nature, AlN does not quickly compress via traditional pressureless sintering. As a result, sintering aids such as yttrium oxide (Y TWO O SIX), calcium oxide (CaO), or unusual earth elements are normally included in promote liquid-phase sintering and enhance grain border diffusion.
The fabrication process usually begins with the carbothermal decrease of light weight aluminum oxide in a nitrogen ambience to manufacture AlN powders. These powders are after that milled, formed through techniques like tape spreading or shot molding, and sintered at temperatures in between 1700 ° C and 1900 ° C under a nitrogen-rich atmosphere. Warm pushing or trigger plasma sintering (SPS) can further enhance thickness and thermal conductivity by decreasing porosity and advertising grain alignment. Advanced additive manufacturing strategies are additionally being explored to make complex-shaped AlN parts with customized thermal administration capabilities.
Application in Electronic Product Packaging and Power Modules
Among the most noticeable uses of aluminum nitride porcelains is in electronic product packaging, particularly for high-power gadgets such as insulated entrance bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power thickness increase in modern electronics, reliable warmth dissipation comes to be crucial to make sure reliability and durability. AlN substratums offer an optimum service by combining high thermal conductivity with exceptional electrical isolation, preventing short circuits and thermal runaway conditions.
Moreover, AlN-based direct adhered copper (DBC) and energetic steel brazed (AMB) substrates are increasingly utilized in power module styles for electric vehicles, renewable energy inverters, and commercial motor drives. Compared to conventional alumina or silicon nitride substratums, AlN provides much faster warm transfer and far better compatibility with silicon chip coefficients of thermal development, thereby reducing mechanical stress and improving overall system performance. Recurring research study aims to enhance the bonding strength and metallization techniques on AlN surfaces to further broaden its application range.
Use in Optoelectronic and High-Temperature Instruments
Past digital packaging, aluminum nitride ceramics play an essential duty in optoelectronic and high-temperature applications as a result of their transparency to ultraviolet (UV) radiation and thermal security. AlN is commonly utilized as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, especially in applications requiring sterilization, picking up, and optical communication. Its large bandgap and reduced absorption coefficient in the UV range make it an excellent candidate for sustaining light weight aluminum gallium nitride (AlGaN)-based heterostructures.
Furthermore, AlN’s capability to operate dependably at temperatures exceeding 1000 ° C makes it appropriate for use in sensors, thermoelectric generators, and components exposed to extreme thermal tons. In aerospace and protection fields, AlN-based sensing unit packages are used in jet engine surveillance systems and high-temperature control systems where standard products would certainly stop working. Constant improvements in thin-film deposition and epitaxial development methods are increasing the potential of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Environmental Security and Long-Term Reliability
An essential consideration for any substrate material is its long-lasting reliability under functional stress and anxieties. Aluminum nitride shows superior ecological stability compared to lots of other ceramics. It is highly immune to corrosion from acids, antacid, and molten metals, guaranteeing toughness in aggressive chemical atmospheres. Nonetheless, AlN is vulnerable to hydrolysis when subjected to wetness at elevated temperature levels, which can weaken its surface area and decrease thermal efficiency.
To alleviate this issue, protective finishes such as silicon nitride (Si four N FOUR), aluminum oxide, or polymer-based encapsulation layers are commonly applied to improve moisture resistance. Furthermore, cautious securing and packaging techniques are implemented during device assembly to preserve the honesty of AlN substratums throughout their service life. As environmental laws come to be a lot more stringent, the non-toxic nature of AlN additionally places it as a preferred choice to beryllium oxide, which postures wellness dangers during handling and disposal.
Conclusion
Light weight aluminum nitride porcelains stand for a class of sophisticated products distinctly matched to resolve the growing needs for effective thermal administration and electric insulation in high-performance electronic and optoelectronic systems. Their remarkable thermal conductivity, chemical security, and compatibility with semiconductor innovations make them one of the most ideal substratum product for a wide variety of applications– from automobile power modules to deep UV LEDs and high-temperature sensors. As manufacture modern technologies continue to advance and cost-efficient production methods grow, the fostering of AlN substratums is anticipated to climb dramatically, driving innovation in next-generation digital and photonic tools.
