1. Material Basics and Architectural Characteristic
1.1 Crystal Chemistry and Polymorphism

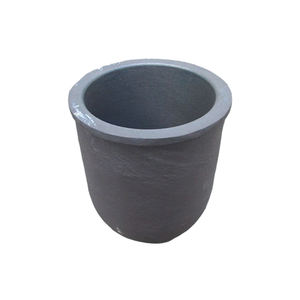

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms organized in a tetrahedral lattice, forming one of the most thermally and chemically robust materials known.
It exists in over 250 polytypic forms, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most appropriate for high-temperature applications.
The solid Si– C bonds, with bond power going beyond 300 kJ/mol, confer remarkable solidity, thermal conductivity, and resistance to thermal shock and chemical assault.
In crucible applications, sintered or reaction-bonded SiC is preferred due to its capability to preserve architectural honesty under extreme thermal gradients and harsh liquified atmospheres.
Unlike oxide ceramics, SiC does not undergo turbulent phase shifts as much as its sublimation point (~ 2700 ° C), making it suitable for continual procedure over 1600 ° C.
1.2 Thermal and Mechanical Performance
A defining quality of SiC crucibles is their high thermal conductivity– varying from 80 to 120 W/(m · K)– which promotes uniform warmth circulation and reduces thermal tension during quick home heating or cooling.
This residential or commercial property contrasts sharply with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are vulnerable to breaking under thermal shock.
SiC additionally shows exceptional mechanical toughness at raised temperatures, keeping over 80% of its room-temperature flexural stamina (up to 400 MPa) also at 1400 ° C.
Its reduced coefficient of thermal development (~ 4.0 × 10 ⁻⁶/ K) even more boosts resistance to thermal shock, an essential factor in repeated biking between ambient and functional temperature levels.
Furthermore, SiC shows exceptional wear and abrasion resistance, ensuring lengthy service life in atmospheres including mechanical handling or rough melt flow.
2. Production Techniques and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Techniques
Commercial SiC crucibles are mainly produced through pressureless sintering, reaction bonding, or warm pressing, each offering distinct benefits in price, purity, and efficiency.
Pressureless sintering involves compacting great SiC powder with sintering aids such as boron and carbon, complied with by high-temperature treatment (2000– 2200 ° C )in inert ambience to attain near-theoretical thickness.
This technique yields high-purity, high-strength crucibles ideal for semiconductor and advanced alloy processing.
Reaction-bonded SiC (RBSC) is created by infiltrating a porous carbon preform with molten silicon, which responds to develop β-SiC sitting, leading to a compound of SiC and recurring silicon.
While slightly reduced in thermal conductivity as a result of metal silicon inclusions, RBSC supplies exceptional dimensional stability and lower manufacturing price, making it preferred for large industrial usage.
Hot-pressed SiC, though a lot more expensive, supplies the highest thickness and pureness, reserved for ultra-demanding applications such as single-crystal development.
2.2 Surface High Quality and Geometric Accuracy
Post-sintering machining, including grinding and splashing, guarantees exact dimensional tolerances and smooth interior surface areas that reduce nucleation websites and minimize contamination danger.
Surface area roughness is thoroughly controlled to prevent thaw attachment and assist in easy launch of solidified materials.
Crucible geometry– such as wall surface density, taper angle, and bottom curvature– is optimized to balance thermal mass, structural stamina, and compatibility with heating system burner.
Customized designs fit details thaw quantities, home heating profiles, and material reactivity, making sure optimum efficiency across diverse industrial procedures.
Advanced quality assurance, including X-ray diffraction, scanning electron microscopy, and ultrasonic screening, validates microstructural homogeneity and absence of flaws like pores or splits.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Hostile Atmospheres
SiC crucibles show outstanding resistance to chemical strike by molten steels, slags, and non-oxidizing salts, outshining traditional graphite and oxide porcelains.
They are secure touching molten light weight aluminum, copper, silver, and their alloys, standing up to wetting and dissolution as a result of reduced interfacial power and development of protective surface oxides.
In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles prevent metallic contamination that can deteriorate digital residential or commercial properties.
Nevertheless, under very oxidizing problems or in the existence of alkaline fluxes, SiC can oxidize to form silica (SiO ₂), which may respond additionally to form low-melting-point silicates.
For that reason, SiC is finest matched for neutral or decreasing environments, where its stability is optimized.
3.2 Limitations and Compatibility Considerations
Regardless of its robustness, SiC is not universally inert; it responds with specific molten materials, particularly iron-group steels (Fe, Ni, Co) at heats through carburization and dissolution processes.
In molten steel handling, SiC crucibles deteriorate swiftly and are therefore avoided.
In a similar way, antacids and alkaline earth metals (e.g., Li, Na, Ca) can decrease SiC, releasing carbon and forming silicides, limiting their usage in battery material synthesis or responsive metal spreading.
For molten glass and porcelains, SiC is normally compatible yet may present trace silicon into extremely sensitive optical or digital glasses.
Recognizing these material-specific communications is important for choosing the ideal crucible kind and ensuring process purity and crucible longevity.
4. Industrial Applications and Technological Development
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are essential in the manufacturing of multicrystalline and monocrystalline silicon ingots for solar cells, where they hold up against extended direct exposure to thaw silicon at ~ 1420 ° C.
Their thermal security makes sure uniform crystallization and reduces misplacement thickness, straight influencing photovoltaic effectiveness.
In factories, SiC crucibles are used for melting non-ferrous steels such as light weight aluminum and brass, providing longer life span and lowered dross development contrasted to clay-graphite options.
They are likewise used in high-temperature research laboratories for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of advanced ceramics and intermetallic compounds.
4.2 Future Trends and Advanced Material Assimilation
Emerging applications include using SiC crucibles in next-generation nuclear materials testing and molten salt reactors, where their resistance to radiation and molten fluorides is being reviewed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O ₃) are being put on SiC surface areas to additionally enhance chemical inertness and avoid silicon diffusion in ultra-high-purity procedures.
Additive manufacturing of SiC components utilizing binder jetting or stereolithography is under advancement, encouraging complex geometries and fast prototyping for specialized crucible styles.
As need grows for energy-efficient, durable, and contamination-free high-temperature processing, silicon carbide crucibles will stay a foundation modern technology in advanced materials making.
In conclusion, silicon carbide crucibles stand for a vital making it possible for element in high-temperature commercial and scientific procedures.
Their unrivaled combination of thermal security, mechanical toughness, and chemical resistance makes them the product of choice for applications where efficiency and reliability are paramount.
