Every component in a train system should work well. This maintains the system secure and reliable. Railway casting parts are extremely crucial. They give support, link points, and conduct signals. Their top quality affects just how stable the train network is. When you buy these components for South Africa, South America, or Russia, you should discover great makers. To be successful, you need to recognize the regional technological regulations. Here are 5 crucial quality criteria you must constantly follow.
1. Product Make-up & Mechanical Characteristics: The Structure of Top quality
The efficiency of cast iron relies on its particular chemical make-up and spreading procedure, and need to meet the international or local requirements of the target audience. A dependable train spreading components manufacturer will certainly provide full product traceability.
1.1 Structure Requirements: Need to adhere to criteria such as International Specifications (ISO), European Standards (EN), Russian GOST criteria, or those generally made use of in South America like IRAM (Argentina) and ABNT NBR (Brazil). The content of harmful components like phosphorus and sulfur should be strictly controlled.
1.2 Mechanical Properties: Focus on tensile toughness, return toughness, hardness, and elongation. For ductile iron, describe requirements such as ISO 1083, EN 1563, or GOST 28394. Purchase should call for vendors to give material certificates and mechanical examination reports that abide by the target market’s needs.

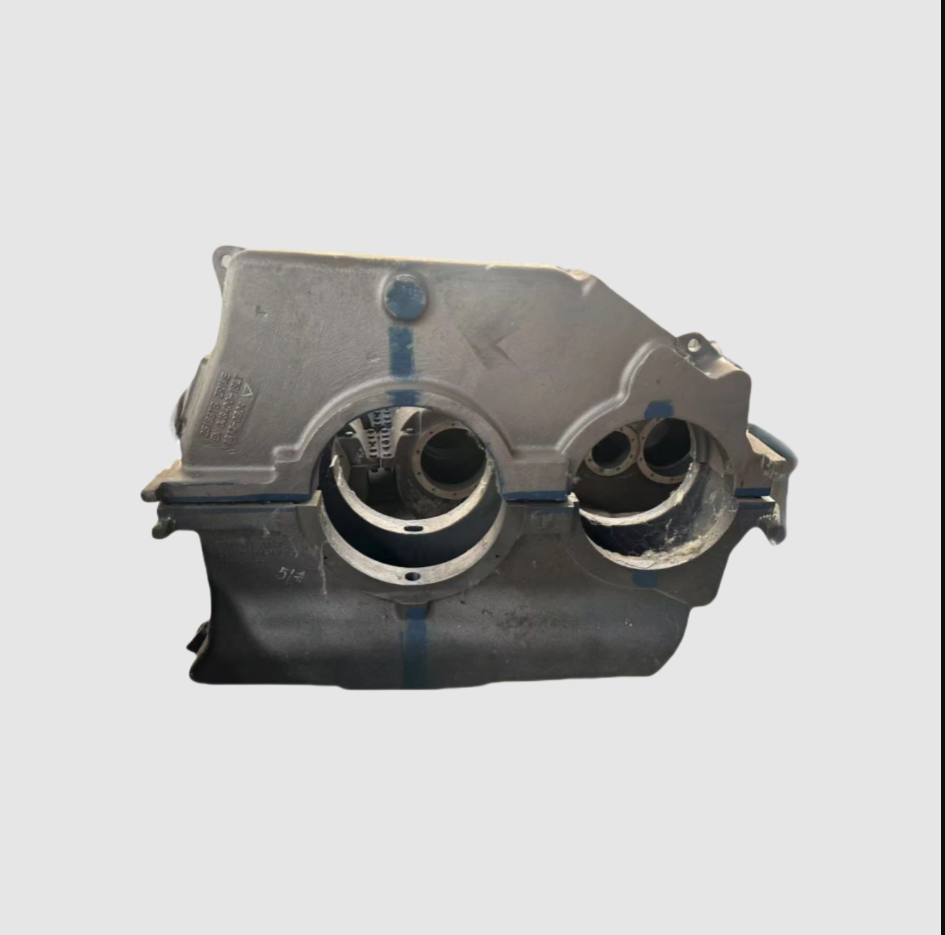

(Railway Cast Iron Gearbox)
2. Dimensional Accuracy & Tolerance Control: Making Certain a “Perfect Fit”
Train jobs worldwide have strict needs for dimensional interchangeability; any kind of variance can influence system integration. Precision is a mark of remarkable train casting makers.
2.1 Crucial Dimensions: All user interface dimensions and placing opening settings for all train casting parts should be 100% examined.
2.2 Tolerance Criteria: Must follow worldwide identified standards like ISO 2768, or particular resistance demands clearly set with the client. For the Russian and CIS markets, special attention should be paid to adhering to pertinent tolerance specifications in GOST 30893.
3. Limitations on Casting Defects: Getting Rid Of Inner Hidden Dangers
The acceptance requirements for casting flaws should be plainly defined in contracts and based upon internationally or regionally recognized specs. Leading train casting components maker operations use rigorous non-destructive screening.
3.1 Surface area Flaws: Requirements like ISO 8062 can be referenced for evaluating casting surface area high quality. Fractures, cool shuts, and other flaws affecting use are not allowed.
3.2 Inner Defects: For crucial load-bearing train spreading parts, non-destructive screening (e.g., ultrasonic, radiographic) should be carried out according to requirements like ISO 4990, EN 12680, or the GOST R 55724 collection, with clear approval degrees for problems.
4. Metallographic Framework & Internal Top Quality
The microscopic framework of the product is the key basis for evaluating whether its internal quality meets the standard. This is a crucial check for any kind of specialist train spreading components manufacturer.
4.1 Ductile Iron: The assessment of nodularization price should follow requirements such as ISO 945-1 or GOST 3443 to ensure its mechanical properties meet the requirements for use under complicated working conditions.
4.2 Graphite Morphology & Matrix Structure: The metallographic inspection record is an essential paper for verifying the security of the manufacturing procedure and must comply with the appropriate worldwide or local criteria.
(Railway Cast Iron Gearbox)
5. Anti-Corrosion Therapy & Surface Area Top Quality: Withstanding Harsh Environments
Provided South Africa’s coastal high salinity, South America’s exotic rainforest moisture, and Russia’s extreme cold and de-icing salts, anti-corrosion treatment for railway casting elements is important.
5.1 Therapy Procedures: Specify the type of anti-corrosion process, such as hot-dip galvanizing (ISO 1461), epoxy covering, etc, and specify crucial signs like coating density, attachment ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Requirements: Must pay attention to particular demands of the target audience, such as Russia’s GOST 9.307 anti-corrosion system qualification, or South Africa’s SANS (South African National Requirement) requirements. A global railway spreading producers will recognize with these varied needs.
Luoyang Fonyo Heavy Industries Co., Ltd. is a leading maker of hefty commercial castings and parts, focusing on giving top quality steel castings, consisting of carbon steel, high manganese steel, alloy steel, and heat-resistant steel spreadings. With a detailed service model incorporating style, casting, machining, and service, Fonyo makes certain that each item fulfills extensive top quality and efficiency requirements to please the requiring needs of numerous hefty sectors.
If you are looking for a trusted supplier of Railway casting parts, Luoyang Fonyo Heavy Industries Co., Ltd. is your ideal choice. Visit Fonyo’s official website (www.railwaypart.com) for more product information and technical support!
