1. Intro to Oil Immersed Transformers
In the intricate internet of our modern-day electrical grid, transformers play a crucial function, quietly stepping voltage up and down to ensure electrical energy can be transferred successfully over fars away and dispersed securely to our homes and sectors. Amongst the different kinds readily available, the oil submersed transformer stands as a testament to proven reliability and durability. For decades, these workhorses have created the backbone of power systems worldwide.
An oil submersed transformer is a sort of electric transformer that makes use of a specific protecting oil as both a coolant and a protecting medium. This layout is primarily utilized for medium to high-power applications, making it a foundation of electrical framework. This guide delves deep into the globe of oil submersed power transformers and oil submersed distribution transformers, exploring their modern technology, applications, and their developing function in an age of digitalization and renewable energy.
1.1 What is an Oil Immersed Transformer?
At its core, an oil immersed transformer contains a magnetic core and copper or aluminum windings housed inside a sealed container full of shielding oil. The primary feature of the oil is twofold:
1. Insulation: The oil possesses high dielectric stamina, efficiently insulating the high-voltage windings from the transformer’s core and grounded container. This protects against brief circuits and electrical malfunctions.
2. Cooling: As the transformer runs, the windings generate significant warm as a result of I ² R losses. The flowing oil absorbs this heat, convects it to the transformer’s container wall surfaces, and dissipates it right into the surrounding air. Larger devices typically feature radiators or fins to increase the area for much more effective cooling.
This dual-purpose use oil makes the oil immersed transformer remarkably reliable and robust, with the ability of managing high tons and holding up against short-term overloads much better than several dry-type options.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these devices are oil immersed transformers, they offer distinctive functions within the power system network. Comprehending the difference is crucial.
An oil submersed power transformer is a heavyweight, normally used in transmission networks at generating terminals and major substations. Their key duty is to “step-up” the voltage generated at the nuclear power plant to extremely high levels (e.g., 138 kV, 230 kV, 500 kV and above) for reliable long-distance transmission, and to “step-down” the voltage at getting substations for more circulation. They are defined by their extremely high power rankings (usually exceeding 100 MVA), complicated building, and on-load tap changers for voltage guideline.
An oil involved distribution transformer, on the various other hand, carries out the last action in the power delivery chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it down to the reduced voltages (e.g., 400/230 V) utilized by commercial and household consumers. You typically find them on energy posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have lower power rankings (typically up to 2,500 kVA), and are made for maximum efficiency at lower, extra consistent tons.

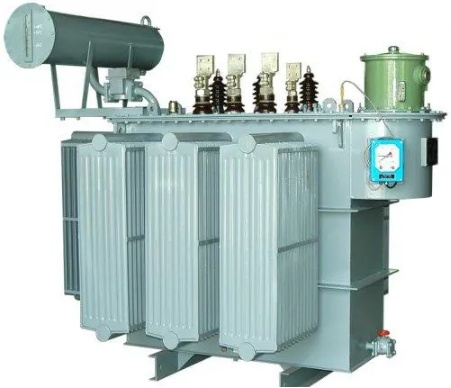

(Oil immersed power transformer)
2. Trick Benefits of Oil Immersed Transformers
The long-lasting popularity of the oil submersed transformer is not accidental. It uses a suite of engaging benefits that make it the favored choice for many requiring applications.
2.1 Superior Cooling and Overload Capability
The premium thermal capacity of oil contrasted to air allows an oil immersed power transformer to manage and dissipate heat a lot more successfully. This converts to a higher overload capacity. During durations of top electricity need, an oil submersed transformer can manage momentary overloads without sustaining damage, a vital function for maintaining grid security. The oil’s circulation ensures also warmth distribution, stopping localized hot spots that can degrade insulation in time.
2.2 Boosted Insulation and Long Service Life
The combination of high-grade mineral oil and thoroughly impregnated paper insulation creates a dielectric system of extraordinary stamina. This durable insulation system safeguards the transformer from voltage rises and transients, contributing to an operational life-span that can include 30-40 years or more with correct maintenance. The secured storage tank also protects the internal components from moisture, dirt, and other atmospheric impurities.
2.3 High Effectiveness and Cost-Effectiveness
For high-power applications, the oil immersed transformer is frequently one of the most economical choice. The products used– mineral oil, steel storage tank, and copper/aluminum windings– use a favorable balance of performance and price. The high effectiveness of these transformers, especially at their ranked tons, causes reduced power losses over their life time, leading to considerable expense financial savings for energy companies and huge industrial individuals.
3. Hot Subjects and Future Trends
The globe of oil immersed transformers is not static. It is continually developing to fulfill brand-new challenges and integrate with modern-day innovations.
3.1 Biodegradable and Fireproof Oils
Environmental and security issues are driving a substantial change far from standard mineral oil. The market is quickly adopting oil submersed transformers loaded with biodegradable esters (synthetic or natural). These oils provide a higher fire point (making them K-class fire-resistant), are much less harmful, and are easily biodegradable, significantly decreasing the environmental influence in situation of a leakage. This fad is making oil submersed distribution transformers safer for setup in metropolitan areas and environmentally sensitive areas.
3.2 Assimilation with Smart Grids and IoT
The contemporary oil involved power transformer is becoming an intelligent node in the wise grid. Sensing units are being integrated to monitor vital parameters in real-time, consisting of:
Dissolved Gas Evaluation (DGA): Detecting fault gases created within the oil to anticipate incipient faults.
Temperature Monitoring: Tracking top-oil and hotspot temperature levels.
Load and Power Quality Surveillance.
This data, transferred by means of IoT (Net of Points) platforms, enables anticipating upkeep, stops unexpected failures, and maximizes transformer utilization and life expectancy.
3.3 Supporting the Renewable Energy Shift
The global push for renewables is creating new need for oil immersed transformers. Large solar farms and wind power installments require durable oil immersed power transformers to step up the created voltage to transmission levels. Furthermore, the recurring nature of renewables areas greater anxiety on grid parts, and the tried and tested dependability and overload capacity of oil immersed transformers make them suitable for this vital role.
4. Choice and Maintenance Best Practices
Selecting the right transformer and preserving it correctly is key to a trustworthy power system.
4.1 Just how to Choose the Right Oil Immersed Transformer
Picking in between an oil submersed power transformer and an oil submersed distribution transformer depends on the application. Key considerations include:
1. Voltage Degree and kVA Ranking: Suit the transformer’s specifications to your system’s demands.
2. Application: Transmission substation, plant, or commercial distribution.
3. Area: Indoor vs. exterior, ecological problems, and fire safety policies (which may influence the choice of insulating oil).
4. Effectiveness Standards: Follow local performance standards like DOE (USA) or EU CoC (Europe).
5. Budget plan: Consider both the initial funding cost and the complete expense of possession, including losses.
(Oil immersed distribution transformer)
4.2 Crucial Upkeep for Long Life
Proactive maintenance is essential for any oil submersed transformer. A thorough program should include:
1. Routine Oil Tasting and Testing: Routine DGA and screening of dielectric stamina and dampness web content are one of the most effective means to evaluate the health and wellness of the transformer.
2. Bushing and Insulation Assessment: Aesthetic checks for fractures, contamination, or leakages.
3. Faucet Changer Maintenance: Regular inspection and servicing of on-load or off-load tap changers.
4. Maintain it Tidy and Dry: Guaranteeing the storage tank exterior, radiators, and breathers are tidy and practical.
The oil immersed transformer, in its duties as both a high-capacity oil submersed power transformer and an ubiquitous oil immersed circulation transformer, remains an irreplaceable component of our international energy framework. Its tested design, coupled with recurring developments in shielding fluids and electronic tracking, guarantees it will certainly remain to be a reputable, efficient, and smart option for powering our world for decades to find. As we construct the grids of the future, incorporating even more renewables and digital knowledge, the robust and versatile oil immersed transformer will undoubtedly be at the heart of it.
