1. Essential Framework and Material Make-up
1.1 The Nanoscale Design of Aerogels

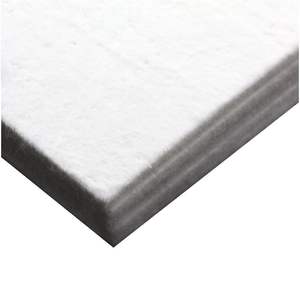

(Aerogel Blanket)
Aerogel coverings are innovative thermal insulation materials built upon a distinct nanostructured framework, where a strong silica or polymer network spans an ultra-high porosity volume– generally exceeding 90% air.
This structure originates from the sol-gel procedure, in which a fluid forerunner (frequently tetramethyl orthosilicate or TMOS) undertakes hydrolysis and polycondensation to form a wet gel, adhered to by supercritical or ambient stress drying to get rid of the liquid without breaking down the fragile permeable network.
The resulting aerogel consists of interconnected nanoparticles (3– 5 nm in size) forming pores on the range of 10– 50 nm, small sufficient to suppress air molecule activity and hence decrease conductive and convective heat transfer.
This sensation, referred to as Knudsen diffusion, substantially lowers the efficient thermal conductivity of the product, frequently to worths between 0.012 and 0.018 W/(m · K) at room temperature– among the most affordable of any solid insulator.
In spite of their reduced density (as reduced as 0.003 g/cm SIX), pure aerogels are naturally breakable, demanding support for functional usage in versatile covering type.
1.2 Reinforcement and Compound Style
To get rid of frailty, aerogel powders or monoliths are mechanically incorporated right into coarse substratums such as glass fiber, polyester, or aramid felts, creating a composite “blanket” that retains exceptional insulation while getting mechanical toughness.
The strengthening matrix supplies tensile strength, versatility, and taking care of toughness, enabling the product to be reduced, bent, and installed in intricate geometries without significant performance loss.
Fiber material typically varies from 5% to 20% by weight, very carefully stabilized to reduce thermal connecting– where fibers perform heat throughout the covering– while making sure architectural integrity.
Some progressed styles integrate hydrophobic surface area therapies (e.g., trimethylsilyl teams) to prevent wetness absorption, which can weaken insulation efficiency and advertise microbial development.
These alterations permit aerogel blankets to preserve steady thermal residential properties even in damp atmospheres, broadening their applicability past controlled lab problems.
2. Production Processes and Scalability
( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Production
The production of aerogel coverings starts with the development of a damp gel within a coarse floor covering, either by impregnating the substratum with a fluid forerunner or by co-forming the gel and fiber network at the same time.
After gelation, the solvent should be removed under problems that protect against capillary stress from collapsing the nanopores; traditionally, this called for supercritical carbon monoxide two drying, a costly and energy-intensive procedure.
Current developments have actually allowed ambient pressure drying with surface area alteration and solvent exchange, considerably decreasing manufacturing expenses and enabling continuous roll-to-roll manufacturing.
In this scalable process, lengthy rolls of fiber mat are continuously covered with forerunner remedy, gelled, dried, and surface-treated, permitting high-volume outcome suitable for industrial applications.
This change has been crucial in transitioning aerogel coverings from specific niche research laboratory materials to commercially sensible items made use of in building, power, and transport sectors.
2.2 Quality Assurance and Performance Consistency
Guaranteeing uniform pore framework, regular density, and dependable thermal efficiency throughout huge manufacturing sets is important for real-world implementation.
Suppliers use extensive quality control steps, consisting of laser scanning for density variant, infrared thermography for thermal mapping, and gravimetric analysis for moisture resistance.
Batch-to-batch reproducibility is necessary, particularly in aerospace and oil & gas sectors, where failure because of insulation break down can have extreme effects.
In addition, standardized screening according to ASTM C177 (warm circulation meter) or ISO 9288 makes sure exact reporting of thermal conductivity and enables fair contrast with typical insulators like mineral woollen or foam.
3. Thermal and Multifunctional Quality
3.1 Superior Insulation Throughout Temperature Varies
Aerogel coverings show exceptional thermal efficiency not only at ambient temperatures however likewise throughout severe arrays– from cryogenic conditions listed below -100 ° C to high temperatures exceeding 600 ° C, depending upon the base material and fiber kind.
At cryogenic temperatures, conventional foams may fracture or shed performance, whereas aerogel blankets stay adaptable and preserve reduced thermal conductivity, making them excellent for LNG pipelines and storage tanks.
In high-temperature applications, such as commercial heating systems or exhaust systems, they give efficient insulation with reduced thickness compared to bulkier alternatives, conserving space and weight.
Their reduced emissivity and ability to show radiant heat better enhance efficiency in glowing barrier configurations.
This large functional envelope makes aerogel coverings distinctly versatile among thermal monitoring solutions.
3.2 Acoustic and Fireproof Qualities
Beyond thermal insulation, aerogel coverings show notable sound-dampening properties due to their open, tortuous pore structure that dissipates acoustic energy through thick losses.
They are significantly utilized in automobile and aerospace cabins to lower environmental pollution without adding considerable mass.
Moreover, most silica-based aerogel coverings are non-combustible, accomplishing Course A fire scores, and do not launch poisonous fumes when exposed to flame– critical for building security and public facilities.
Their smoke density is exceptionally reduced, boosting exposure during emergency discharges.
4. Applications in Industry and Arising Technologies
4.1 Energy Performance in Building and Industrial Equipment
Aerogel blankets are transforming power performance in style and commercial design by enabling thinner, higher-performance insulation layers.
In buildings, they are made use of in retrofitting historic structures where wall thickness can not be raised, or in high-performance façades and home windows to lessen thermal connecting.
In oil and gas, they protect pipes carrying hot liquids or cryogenic LNG, lowering energy loss and avoiding condensation or ice formation.
Their light-weight nature likewise minimizes structural lots, particularly useful in offshore systems and mobile devices.
4.2 Aerospace, Automotive, and Consumer Applications
In aerospace, aerogel blankets protect spacecraft from severe temperature fluctuations during re-entry and shield sensitive instruments from thermal cycling in space.
NASA has employed them in Mars rovers and astronaut matches for passive thermal law.
Automotive suppliers integrate aerogel insulation into electric vehicle battery loads to stop thermal runaway and boost safety and performance.
Consumer products, including outside clothing, shoes, and outdoor camping gear, now include aerogel cellular linings for exceptional warmth without bulk.
As production prices decline and sustainability improves, aerogel blankets are positioned to end up being conventional services in global initiatives to decrease energy usage and carbon exhausts.
In conclusion, aerogel coverings stand for a convergence of nanotechnology and functional design, delivering unmatched thermal performance in a flexible, long lasting format.
Their ability to save power, area, and weight while preserving safety and security and environmental compatibility positions them as vital enablers of lasting innovation throughout diverse sectors.
