1. Material Basics and Structural Qualities of Alumina Ceramics
1.1 Make-up, Crystallography, and Phase Security

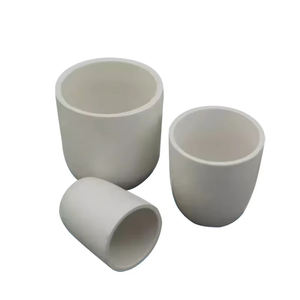

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels made largely from light weight aluminum oxide (Al two O THREE), among one of the most commonly utilized advanced ceramics because of its remarkable mix of thermal, mechanical, and chemical security.
The leading crystalline stage in these crucibles is alpha-alumina (α-Al ₂ O THREE), which belongs to the corundum framework– a hexagonal close-packed arrangement of oxygen ions with two-thirds of the octahedral interstices occupied by trivalent aluminum ions.
This dense atomic packaging leads to strong ionic and covalent bonding, conferring high melting factor (2072 ° C), superb solidity (9 on the Mohs scale), and resistance to creep and contortion at raised temperature levels.
While pure alumina is excellent for many applications, trace dopants such as magnesium oxide (MgO) are often added during sintering to hinder grain growth and improve microstructural harmony, consequently boosting mechanical toughness and thermal shock resistance.
The stage purity of α-Al two O ₃ is crucial; transitional alumina stages (e.g., γ, δ, θ) that create at reduced temperature levels are metastable and undergo quantity changes upon conversion to alpha phase, potentially leading to fracturing or failure under thermal biking.
1.2 Microstructure and Porosity Control in Crucible Manufacture
The performance of an alumina crucible is greatly influenced by its microstructure, which is identified during powder processing, forming, and sintering phases.
High-purity alumina powders (commonly 99.5% to 99.99% Al Two O SIX) are formed right into crucible forms making use of strategies such as uniaxial pushing, isostatic pushing, or slide casting, adhered to by sintering at temperature levels in between 1500 ° C and 1700 ° C.
Throughout sintering, diffusion systems drive bit coalescence, minimizing porosity and enhancing thickness– preferably achieving > 99% academic thickness to decrease leaks in the structure and chemical seepage.
Fine-grained microstructures boost mechanical stamina and resistance to thermal stress and anxiety, while regulated porosity (in some specialized grades) can enhance thermal shock tolerance by dissipating strain energy.
Surface finish is additionally important: a smooth interior surface lessens nucleation sites for undesirable reactions and helps with very easy elimination of solidified products after processing.
Crucible geometry– including wall surface density, curvature, and base design– is optimized to stabilize heat transfer performance, structural honesty, and resistance to thermal slopes during fast heating or cooling.
( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Efficiency and Thermal Shock Habits
Alumina crucibles are regularly used in environments surpassing 1600 ° C, making them essential in high-temperature products research, steel refining, and crystal development processes.
They exhibit low thermal conductivity (~ 30 W/m · K), which, while limiting warmth transfer rates, additionally provides a level of thermal insulation and assists preserve temperature gradients needed for directional solidification or zone melting.
An essential challenge is thermal shock resistance– the ability to withstand sudden temperature modifications without splitting.
Although alumina has a reasonably reduced coefficient of thermal growth (~ 8 × 10 ⁻⁶/ K), its high stiffness and brittleness make it susceptible to crack when based on steep thermal slopes, especially during quick heating or quenching.
To alleviate this, users are advised to adhere to controlled ramping procedures, preheat crucibles gradually, and avoid straight exposure to open up fires or cool surfaces.
Advanced grades incorporate zirconia (ZrO ₂) toughening or graded compositions to enhance fracture resistance with devices such as stage improvement strengthening or residual compressive stress generation.
2.2 Chemical Inertness and Compatibility with Reactive Melts
One of the specifying benefits of alumina crucibles is their chemical inertness towards a large range of molten steels, oxides, and salts.
They are very resistant to fundamental slags, molten glasses, and several metallic alloys, including iron, nickel, cobalt, and their oxides, which makes them ideal for use in metallurgical evaluation, thermogravimetric experiments, and ceramic sintering.
Nevertheless, they are not globally inert: alumina reacts with highly acidic changes such as phosphoric acid or boron trioxide at heats, and it can be worn away by molten antacid like salt hydroxide or potassium carbonate.
Particularly crucial is their communication with light weight aluminum metal and aluminum-rich alloys, which can minimize Al ₂ O five by means of the reaction: 2Al + Al ₂ O TWO → 3Al ₂ O (suboxide), bring about pitting and eventual failing.
In a similar way, titanium, zirconium, and rare-earth metals show high sensitivity with alumina, developing aluminides or intricate oxides that compromise crucible stability and contaminate the thaw.
For such applications, alternative crucible materials like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are favored.
3. Applications in Scientific Research and Industrial Processing
3.1 Role in Products Synthesis and Crystal Development
Alumina crucibles are main to numerous high-temperature synthesis courses, including solid-state responses, flux development, and thaw handling of functional ceramics and intermetallics.
In solid-state chemistry, they act as inert containers for calcining powders, manufacturing phosphors, or preparing precursor materials for lithium-ion battery cathodes.
For crystal growth methods such as the Czochralski or Bridgman techniques, alumina crucibles are utilized to consist of molten oxides like yttrium light weight aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high pureness makes certain very little contamination of the expanding crystal, while their dimensional stability supports reproducible development problems over prolonged durations.
In change development, where single crystals are grown from a high-temperature solvent, alumina crucibles must resist dissolution by the change medium– commonly borates or molybdates– needing mindful option of crucible quality and handling specifications.
3.2 Use in Analytical Chemistry and Industrial Melting Procedures
In logical research laboratories, alumina crucibles are common equipment in thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC), where accurate mass dimensions are made under controlled ambiences and temperature level ramps.
Their non-magnetic nature, high thermal stability, and compatibility with inert and oxidizing settings make them perfect for such accuracy dimensions.
In industrial settings, alumina crucibles are utilized in induction and resistance heating systems for melting rare-earth elements, alloying, and casting operations, specifically in jewelry, dental, and aerospace component manufacturing.
They are additionally made use of in the manufacturing of technological ceramics, where raw powders are sintered or hot-pressed within alumina setters and crucibles to prevent contamination and make sure consistent heating.
4. Limitations, Managing Practices, and Future Material Enhancements
4.1 Operational Restraints and Best Practices for Longevity
Regardless of their toughness, alumina crucibles have well-defined functional limitations that must be respected to make sure security and performance.
Thermal shock stays the most typical cause of failure; therefore, steady heating and cooling down cycles are necessary, especially when transitioning via the 400– 600 ° C variety where recurring tensions can accumulate.
Mechanical damages from messing up, thermal biking, or contact with difficult products can initiate microcracks that propagate under stress and anxiety.
Cleaning up need to be performed meticulously– avoiding thermal quenching or abrasive approaches– and made use of crucibles should be checked for indications of spalling, staining, or deformation before reuse.
Cross-contamination is one more issue: crucibles used for responsive or harmful materials ought to not be repurposed for high-purity synthesis without extensive cleansing or need to be discarded.
4.2 Arising Fads in Composite and Coated Alumina Solutions
To prolong the capabilities of typical alumina crucibles, scientists are establishing composite and functionally rated materials.
Examples include alumina-zirconia (Al two O THREE-ZrO TWO) compounds that boost toughness and thermal shock resistance, or alumina-silicon carbide (Al ₂ O ₃-SiC) variants that improve thermal conductivity for more uniform heating.
Surface area layers with rare-earth oxides (e.g., yttria or scandia) are being checked out to produce a diffusion obstacle against reactive steels, consequently broadening the variety of suitable melts.
Furthermore, additive production of alumina elements is emerging, enabling personalized crucible geometries with inner channels for temperature surveillance or gas flow, opening brand-new opportunities in procedure control and activator design.
Finally, alumina crucibles stay a cornerstone of high-temperature innovation, valued for their dependability, pureness, and versatility throughout clinical and commercial domains.
Their proceeded evolution via microstructural design and crossbreed product design makes sure that they will remain crucial devices in the innovation of materials scientific research, energy modern technologies, and advanced production.
