1. Material Scientific Research and Structural Characteristic
1.1 Crystal Framework and Chemical Security

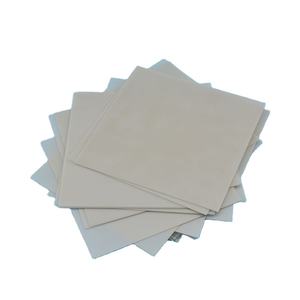

(Aluminum Nitride Ceramic Substrates)
Aluminum nitride (AlN) is a broad bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, composed of rotating layers of aluminum and nitrogen atoms bound via strong covalent interactions.
This robust atomic setup grants AlN with phenomenal thermal security, keeping architectural integrity approximately 2200 ° C in inert ambiences and standing up to decomposition under extreme thermal cycling.
Unlike alumina (Al ₂ O SIX), AlN is chemically inert to thaw metals and numerous responsive gases, making it suitable for harsh environments such as semiconductor processing chambers and high-temperature heaters.
Its high resistance to oxidation– developing only a thin safety Al two O ₃ layer at surface area upon direct exposure to air– ensures long-term dependability without considerable deterioration of mass residential or commercial properties.
Furthermore, AlN shows outstanding electrical insulation with a resistivity going beyond 10 ¹⁴ Ω · centimeters and a dielectric strength over 30 kV/mm, crucial for high-voltage applications.
1.2 Thermal Conductivity and Electronic Features
One of the most defining attribute of aluminum nitride is its impressive thermal conductivity, normally ranging from 140 to 180 W/(m · K )for commercial-grade substratums– over five times more than that of alumina (≈ 30 W/(m · K)).
This performance stems from the low atomic mass of nitrogen and light weight aluminum, integrated with solid bonding and marginal factor flaws, which enable effective phonon transport via the latticework.
Nevertheless, oxygen pollutants are particularly destructive; also trace quantities (above 100 ppm) alternative to nitrogen websites, producing light weight aluminum jobs and spreading phonons, thereby considerably decreasing thermal conductivity.
High-purity AlN powders manufactured by means of carbothermal decrease or straight nitridation are vital to accomplish ideal warmth dissipation.
Despite being an electric insulator, AlN’s piezoelectric and pyroelectric residential or commercial properties make it useful in sensing units and acoustic wave devices, while its wide bandgap (~ 6.2 eV) sustains procedure in high-power and high-frequency digital systems.
2. Fabrication Processes and Production Obstacles
( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Methods
Making high-performance AlN substratums begins with the synthesis of ultra-fine, high-purity powder, typically accomplished via responses such as Al Two O FIVE + 3C + N ₂ → 2AlN + 3CO (carbothermal reduction) or direct nitridation of aluminum steel: 2Al + N ₂ → 2AlN.
The resulting powder should be thoroughly grated and doped with sintering help like Y TWO O TWO, CaO, or rare planet oxides to promote densification at temperatures between 1700 ° C and 1900 ° C under nitrogen ambience.
These ingredients form short-term fluid stages that enhance grain boundary diffusion, allowing complete densification (> 99% academic thickness) while lessening oxygen contamination.
Post-sintering annealing in carbon-rich environments can better reduce oxygen web content by eliminating intergranular oxides, consequently restoring peak thermal conductivity.
Accomplishing consistent microstructure with controlled grain size is crucial to balance mechanical toughness, thermal performance, and manufacturability.
2.2 Substrate Forming and Metallization
When sintered, AlN porcelains are precision-ground and lapped to meet tight dimensional tolerances required for electronic packaging, often down to micrometer-level flatness.
Through-hole exploration, laser cutting, and surface pattern enable combination right into multilayer bundles and crossbreed circuits.
An essential action in substrate fabrication is metallization– the application of conductive layers (typically tungsten, molybdenum, or copper) using processes such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).
For DBC, copper aluminum foils are bound to AlN surfaces at raised temperature levels in a controlled ambience, creating a solid interface ideal for high-current applications.
Different methods like active metal brazing (AMB) make use of titanium-containing solders to boost attachment and thermal exhaustion resistance, especially under repeated power cycling.
Appropriate interfacial engineering ensures low thermal resistance and high mechanical integrity in running gadgets.
3. Efficiency Advantages in Electronic Solution
3.1 Thermal Monitoring in Power Electronics
AlN substrates master handling warmth created by high-power semiconductor gadgets such as IGBTs, MOSFETs, and RF amplifiers made use of in electrical lorries, renewable resource inverters, and telecoms facilities.
Reliable heat removal prevents localized hotspots, decreases thermal anxiety, and extends tool life time by alleviating electromigration and delamination threats.
Contrasted to typical Al two O three substratums, AlN allows smaller bundle dimensions and greater power densities as a result of its premium thermal conductivity, permitting designers to push efficiency limits without jeopardizing dependability.
In LED lights and laser diodes, where joint temperature level directly influences efficiency and shade security, AlN substratums dramatically boost luminous result and operational life-span.
Its coefficient of thermal expansion (CTE ≈ 4.5 ppm/K) likewise closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), minimizing thermo-mechanical stress and anxiety throughout thermal biking.
3.2 Electrical and Mechanical Dependability
Past thermal performance, AlN provides reduced dielectric loss (tan δ < 0.0005) and secure permittivity (εᵣ ≈ 8.9) throughout a broad frequency array, making it suitable for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature prevents moisture ingress, getting rid of deterioration dangers in humid atmospheres– a vital benefit over organic substratums.
Mechanically, AlN possesses high flexural strength (300– 400 MPa) and solidity (HV ≈ 1200), making certain longevity during handling, assembly, and field procedure.
These features jointly add to boosted system reliability, minimized failing rates, and reduced overall price of ownership in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Defense Equipments
AlN ceramic substratums are currently standard in innovative power components for commercial motor drives, wind and solar inverters, and onboard chargers in electrical and hybrid cars.
In aerospace and defense, they sustain radar systems, electronic war units, and satellite interactions, where performance under severe problems is non-negotiable.
Medical imaging devices, including X-ray generators and MRI systems, also benefit from AlN’s radiation resistance and signal integrity.
As electrification patterns speed up across transportation and energy industries, demand for AlN substrates continues to expand, driven by the requirement for small, effective, and reputable power electronic devices.
4.2 Emerging Combination and Lasting Advancement
Future advancements concentrate on incorporating AlN into three-dimensional product packaging architectures, ingrained passive elements, and heterogeneous combination platforms combining Si, SiC, and GaN devices.
Study right into nanostructured AlN movies and single-crystal substratums aims to additional boost thermal conductivity towards theoretical restrictions (> 300 W/(m · K)) for next-generation quantum and optoelectronic gadgets.
Initiatives to lower production prices through scalable powder synthesis, additive production of complex ceramic frameworks, and recycling of scrap AlN are acquiring momentum to improve sustainability.
Additionally, modeling devices making use of finite element evaluation (FEA) and machine learning are being employed to maximize substrate style for details thermal and electrical tons.
Finally, light weight aluminum nitride ceramic substratums represent a keystone modern technology in contemporary electronic devices, distinctively linking the gap between electric insulation and exceptional thermal transmission.
Their duty in enabling high-efficiency, high-reliability power systems underscores their calculated importance in the ongoing evolution of electronic and energy technologies.
