As an essential not natural functional product, oxide powder plays an irreplaceable duty in advanced ceramics, digital devices, catalytic chemical engineering and biomedicine. This paper methodically analyzes the physicochemical homes, microstructural characteristics and application distinctions of regular oxide powders such as Al2O2, SiO2, TiO2, ZrO2 and MgO. Researches have actually revealed that various oxides show considerably various performance qualities as a result of their one-of-a-kind crystal framework and chemical structure: Al2O2 is understood for its high hardness and security, ZrO2 has excellent phase change strengthening buildings, TiO2 shows exceptional photoelectric homes, SiO2 has outstanding surface area adjustability, and MgO displays unique alkaline features. With the development of nanotechnology, the preparation process of oxide powders has actually been continuously innovated, and its efficiency policy and application expansion have actually ended up being a study hotspot in products scientific research. This paper methodically compares numerous measurements, such as crystallographic properties, surface area homes, and thermodynamic habits, to supply an academic basis for material choice in engineering applications.
Physical and chemical properties and functional qualities
The performance differences of oxide powders are initial mirrored in the crystal framework qualities. Al2O2 exists primarily in the kind of α phase (hexagonal close-packed) and γ phase (cubic problem spinel), amongst which α-Al2O2 has exceptionally high architectural stability (melting point 2054 ℃); SiO2 has various crystal forms such as quartz and cristobalite, and its silicon-oxygen tetrahedral structure leads to low thermal conductivity; the anatase and rutile frameworks of TiO2 have significant distinctions in photocatalytic performance; the tetragonal and monoclinic stage transitions of ZrO2 are accompanied by a 3-5% volume adjustment; the NaCl-type cubic structure of MgO offers it outstanding alkalinity features. In terms of surface residential properties, the certain surface area of SiO2 created by the gas stage approach can reach 200-400m TWO/ g, while that of merged quartz is just 0.5-2m TWO/ g; the equiaxed morphology of Al2O2 powder is conducive to sintering densification, and the nano-scale dispersion of ZrO2 can significantly improve the strength of porcelains.

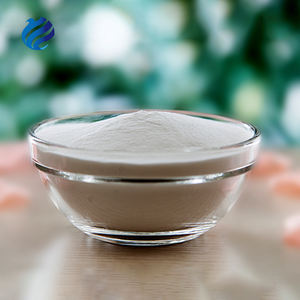

(Oxide Powder)
In terms of thermodynamic and mechanical residential or commercial properties, ZrO two undertakes a martensitic stage makeover at heats (> 1170 ° C) and can be totally stabilized by including 3mol% Y â‚‚ O ₃; the thermal development coefficient of Al â‚‚ O FIVE (8.1 × 10 â»â¶/ K) matches well with most steels; the Vickers firmness of α-Al â‚‚ O three can get to 20GPa, making it an essential wear-resistant material; partly maintained ZrO two boosts the crack toughness to above 10MPa · m ONE/ ² via a phase makeover strengthening device. In terms of practical residential or commercial properties, the bandgap size of TiO â‚‚ (3.2 eV for anatase and 3.0 eV for rutile) identifies its excellent ultraviolet light reaction qualities; the oxygen ion conductivity of ZrO TWO (σ=0.1S/cm@1000℃) makes it the first choice for SOFC electrolytes; the high resistivity of α-Al two O THREE (> 10 ¹ⴠΩ · centimeters) fulfills the demands of insulation product packaging.
Application areas and chemical security
In the area of architectural ceramics, high-purity α-Al ₂ O TWO (> 99.5%) is used for reducing tools and shield protection, and its flexing strength can get to 500MPa; Y-TZP reveals superb biocompatibility in oral remediations; MgO partially supported ZrO ₂ is utilized for engine parts, and its temperature resistance can reach 1400 ℃. In terms of catalysis and provider, the huge certain surface of γ-Al two O FIVE (150-300m ²/ g)makes it a high-quality stimulant carrier; the photocatalytic activity of TiO two is greater than 85% reliable in ecological filtration; CeO ₂-ZrO two strong option is made use of in auto three-way drivers, and the oxygen storage space capability reaches 300μmol/ g.
A comparison of chemical security shows that α-Al two O six has exceptional rust resistance in the pH variety of 3-11; ZrO two shows exceptional deterioration resistance to molten metal; SiO â‚‚ dissolves at a price of as much as 10 â»â¶ g/(m ² · s) in an alkaline setting. In terms of surface area sensitivity, the alkaline surface of MgO can successfully adsorb acidic gases; the surface silanol groups of SiO TWO (4-6/ nm TWO) provide modification sites; the surface oxygen openings of ZrO â‚‚ are the structural basis of its catalytic task.
Preparation procedure and price analysis
The prep work process dramatically impacts the efficiency of oxide powders. SiO â‚‚ prepared by the sol-gel approach has a controlled mesoporous framework (pore dimension 2-50nm); Al â‚‚ O six powder prepared by plasma technique can get to 99.99% purity; TiO two nanorods synthesized by the hydrothermal technique have an adjustable element ratio (5-20). The post-treatment procedure is likewise vital: calcination temperature level has a crucial impact on Al two O two phase shift; ball milling can reduce ZrO â‚‚ particle dimension from micron level to below 100nm; surface modification can considerably improve the dispersibility of SiO â‚‚ in polymers.
In regards to price and industrialization, industrial-grade Al ₂ O FIVE (1.5 − 3/kg) has considerable price advantages ； High Purtiy ZrO2 （ 1.5 − 3/kg ） likewise does ； High Purtiy ZrO2 (50-100/ kg) is considerably influenced by uncommon planet ingredients; gas phase SiO ₂ ($10-30/ kg) is 3-5 times much more costly than the rainfall approach. In regards to large production, the Bayer procedure of Al two O six is mature, with a yearly manufacturing capability of over one million tons; the chlor-alkali process of ZrO two has high power usage (> 30kWh/kg); the chlorination procedure of TiO two deals with ecological stress.
Arising applications and growth fads
In the power area, Li â‚„ Ti â‚… O â‚â‚‚ has no pressure characteristics as an unfavorable electrode material; the effectiveness of TiO â‚‚ nanotube selections in perovskite solar batteries surpasses 18%. In biomedicine, the fatigue life of ZrO â‚‚ implants exceeds 10 seven cycles; nano-MgO displays anti-bacterial homes (anti-bacterial price > 99%); the drug loading of mesoporous SiO â‚‚ can reach 300mg/g.
(Oxide Powder)
Future development instructions consist of establishing new doping systems (such as high entropy oxides), precisely managing surface area termination groups, creating green and affordable prep work processes, and checking out brand-new cross-scale composite devices. Via multi-scale architectural guideline and user interface design, the performance borders of oxide powders will remain to broaden, offering advanced product options for new energy, ecological governance, biomedicine and various other areas. In useful applications, it is necessary to thoroughly think about the innate residential properties of the product, procedure problems and price factors to choose the most suitable kind of oxide powder. Al Two O ₃ appropriates for high mechanical tension environments, ZrO ₂ is suitable for the biomedical field, TiO ₂ has noticeable advantages in photocatalysis, SiO two is an ideal provider material, and MgO is suitable for unique chain reaction settings. With the innovation of characterization technology and preparation modern technology, the efficiency optimization and application growth of oxide powders will introduce developments.
